Design and decomposition

War Card Game Example - 2nd iteration

Task: Game works and follows War rules (this is one of the first two pieces)

Requirements

• Simulate deck of shuffled cards
• Simulate the player's hand
• Simulate computer's hand
• Player can play their next card
• Computer automatically plays next card after player
• Determine winner of round
• Cards added to deck of loser
• Track points
• Determine winner of game

At this point, I'm ready to move to coding. To do that, I will start by outlining these requirements with comments and naming functions to actually carry out the steps. These are just initial ideas and may need to change as the project progresses and I develop a better understanding of how it should work

/** War game */

// Simulate deck of shuffled cards
function shuffle() {

}

// Split deck into player and computer hands
function splitDeck() {

}

// Player plays a card
function playerPick() {

}

// Computer plays a card automatically after player
function computerPick() {

}

// Check who won the round
function getRoundWinner() {

}

// Add cards to the loser's deck
function giveCardsToLoser() {

}

// Add points to winner's score
function addPoints() {

}

// Determine winner of game
function getGameWinner() {

}


War Card Game Example - 3rd iteration

Task: Simulate a deck of cards (seems like the most logical place to start)

Requirements

• A way to represent each card
• A place to store the deck
• 52 cards in the deck
• A way to randomize the deck

These are small enough that I can see how to solve them. I will use comments and try to give things descriptive names.

Solution to first two requirements

/** War game */

/*** Simulate deck of shuffled cards */
// Each card will be a string like "2H" for 2 of hearts
// A global array is a good way to store the shuffled deck
let deck = [];

// Rather than list all 52 cards, I will combine values from two arrays to make each card string
// card = values[i] + suits[j]
const suits = ["H", "C", "S", "D"];
const values = ["2", "3", "4", "5", "6", "7", "8", "9", "10", "J", "Q", "K", "A"];

Solution to third requirement

After testing, I realized that this algorithm puts duplicate cards in the array so I put a TODO comment to remind me to fix that

// Shuffle deck
function shuffle() {
  // Generate 52 random cards and add to the deck
  for (let n = 0; n < 52; n++) {
    // Pick rand num from 0 to 3 for suit index and pick random suit
    let rand = Math.floor(Math.random() * 4);
    let suit = suits[rand];

    // Pick rand num from 0 to 13 for value index and pick random value
    rand = Math.floor(Math.random() * 13);
    value = values[rand];

    // Concatenate strings to make a card like "QD"
    let card = value + suit;

    // Add card to deck list
    deck.push(card); // TODO: check for duplicates, don't want two of the same card

    // repeat 52 times for full deck
  }
}

// Test by printing deck to console after calling shuffle()
shuffle();
console.log(deck);

War Card Game - 4th iteration

Task: To fill deck with random cards without duplicates

// Shuffle deck
function shuffle() {
  // Generate 52 random cards and add to the deck
  // Clear the deck
  deck = [];
  for (let n = 0; n < 52; n++) {
    // Pick rand num from 0 to 3 for suit index and pick random suit
    let rand = Math.floor(Math.random() * 4);
    let suit = suits[rand];

    // Pick rand num from 0 to 13 for value index and pick random value
    rand = Math.floor(Math.random() * 13);
    value = values[rand];

    // Concatenate strings to make a card like "QD"
    let card = value + suit;

    // Add card to deck list
    // Only add card to deck if it isn't already there
    if (deck.indexOf(card) >= 0) {
      // Card is on the list already
      // Decrement n because the card shouldn't be counted
      n--;
    }
    else {
      deck.push(card);
    }

    // repeat 52 times for full deck
  }
}

// Test by printing deck to console after calling shuffle()
shuffle();
console.log(deck);

War Card Game - 5th iteration

Tasks: 1. Simulate the player's hand, 2. Simulate computer's hand, 3. Simulate discard pile

Requirements

• A place (variable) to store the deck for each hand
• A way to split the shuffled deck between the player and computer hands to start the game

// Global arrays representing the different decks to hold the strings representing the cards
let playerHand = [];
let compHand = [];
let discardPile = [];

This algorithm to split the cards is equivalent to "cutting" the deck exactly in half

// Split deck into player and computer hands
function splitDeck() {
  // Clear the player's hand to start clean
  playerHand = [];

  // Put the first half of the deck in the player's hand
  for (let i = 0; i < deck.length / 2; i++){
    playerHand.push(deck[i]);
  }

  // Clear the computer's hand
  compHand = [];

  // Put the second half in the computer's hand
  for (let i = deck.length / 2; i < deck.length; i++){
    compHand.push(deck[i]);
  }
}

// Test split deck
shuffle();
splitDeck();
console.log(playerHand);
console.log(compHand);


War Card Game - 6th iteration

Task: Graphic UI
I am to the point in the script where the next logical step is to start putting together the user interface and developing the actual gameplay.

Requirements

• A UI element to start a new game
• UI elements for player and computer decks
• UI elements for cards in play
• Animations and messages for game events

Animations and messages needs to be broken down further, but I will create basic versions of the other requirements in this step and refine them later.

I used divs to represent the basic elements of the game and named each element I anticipate needing to find in JavaScript.

<body>
<header>
  <h1>War</h1>
  </header>

  <main>
    <div id="game-area">
      <div id="player-deck" onclick="playerPick()" class="card-back">
        + +<br>+ +
        </div>
      <div id="player-card" class="card-front">
        <h3 id="player-card-value">3</h3>
      </div>

      <div id="comp-card" class="card-front">
        <h3 id="comp-card-value">5</h3>
      </div>

      <div id="comp-deck" class="card-back">
        + +<br>+ +
      </div>

    </div>>
    <button id="new-button" class="card-back" onclick="start()">Deal</button>
  </main>
</body>

Some CSS styles to make it look somewhat like cards.

body {
  margin: 0px;
  background-color: green;
}

h1 {
  font-size: 60px;
  color: red;
  text-align: center;
}

#game-area {
  display: flex;
  flex-direction: row;
  justify-content: space-around;
  padding: 20px;
}

#new-button {
  font-size: 60px;
  margin: 40px auto;
}

.card-front,
.card-back, .card-empty {
  box-sizing: border-box;
  display: flex;
  flex-direction: column;
  justify-content: center;
  align-items: center;
  width: 200px;
  height: 300px;
  font-size: 100px;
  border: 1px solid black;
  border-radius: 10px;
}

.card-front {
  background-color: white;
}

.card-empty {
  background-color: inherit;
}

.card-back {
  background-color: darkblue;
  color: cornflowerblue;
}

#new-button:hover, #player-deck:hover {
  border: 2px solid cornflowerblue;
  cursor: pointer;
}

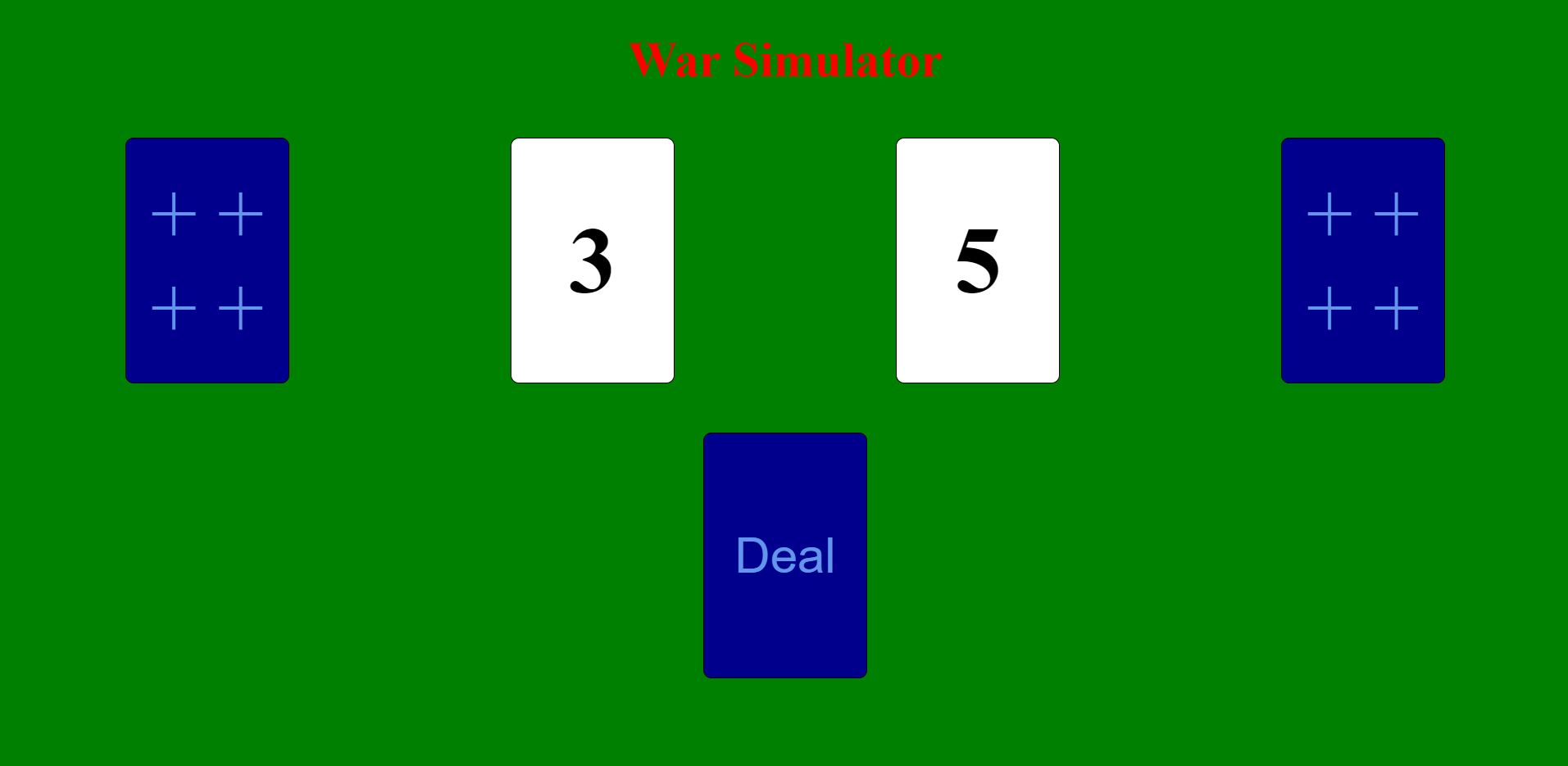

Screenshot of user interface

War Card Game - 7th iteration

Task: Player can play their next card

Requirements

• Triggerd by click on player's deck
• Card is next card from player deck
• UI updates with correct card in the correct location
• Triggers computer to take a turn

// Player picks a card - this will be triggered from an onclick event
function playerPick() {
  // Pick next card from player deck
  playerCard = playerHand.pop();

  // Update UI
  // Get card value and suit from string
  let value = "", suit = "";
  if (playerCard.length == 3) {
    // 10 cards take two characters for a total of 3 with the suit
    value = playerCard.substring(0, 2);
    suit = playerCard.substring(2, 3);
  }
  else {
    value = playerCard.substring(0, 1);
    suit = playerCard.substring(1, 2);
  }
  // Testing that value and suit values are correctly found
  console.log(value + " of " + suit);

  // Set properties on player card element
  let valueElement = document.getElementById("player-card-value");
  valueElement.innerHTML = value;
  if (suit == "H" || suit == "D") {
    valueElement.style.color = "red";
  } else {
    valueElement.style.color = "black";
  }

  // TODO: Set suit image

  // Trigger computer move
  computerPick();
}


War Card Game - 8th iteration

Task: Computer automatically plays card

Requirements

• Card is played after player's turn
• Card is next card from computer deck
• UI updates with correct card in the correct location

Call the computerPick() function at the end of the playerPick() function

function playerPick() {
  /* other code not shown */

  // Trigger computer move
  computerPick();
}

Computer card pick algorithm is essentially the same as the algorithm for the playerPick() function.

// Computer picks a card
function computerPick() {
  // Pick next card from comp deck
  compCard = compHand.pop();

  // Update UI
  // Get card value and suit from string same algorithm as in playerPick()
  let value = "", suit = "";
  if (compCard.length == 3) {
    value = compCard.substring(0, 2);
    suit = compCard.substring(2, 3);
  }
  else {
    value = compCard.substring(0, 1);
    suit = compCard.substring(1, 2);
  }

  // Set properties on player card element
  let valueElement = document.getElementById("comp-card-value");
  valueElement.innerHTML = value;
  if (suit == "H" || suit == "D") {
    valueElement.style.color = "red";
  } else {
    valueElement.style.color = "black";
  }

  // TODO: Set suit image
}

War Card Game - 9th iteration

Task: Determine winner of round

Requirements

• Winner based on highest face value with Aces high
• Tie results in playing a second round, loser takes all cards in play
• Round scored automatically after computer takes turn
